• Eyepiece: 12.5X.
• Pupilar distance: 54 mm~82 mm.
• Eyepiece adjustment: -7D ~ +7D.
• Slit width: 0mm~14mm continuous.
• Slit height : 1mm~14mm continuous.
• Spot diameter : 14mm, 10mm, 5mm, 3mm, 1mm, 0.2mm.
• Slit angle : 0~180 Rotational.
• Filters: Heat, Gray, Green(Red-free), Blue(Cobalt).
• Illumination: 12v, 50w LED.
• Fixation: Red LED 3.5V.
• Suply: 100~240V.
• Frequency: 48~62 Hz.


SLL3M

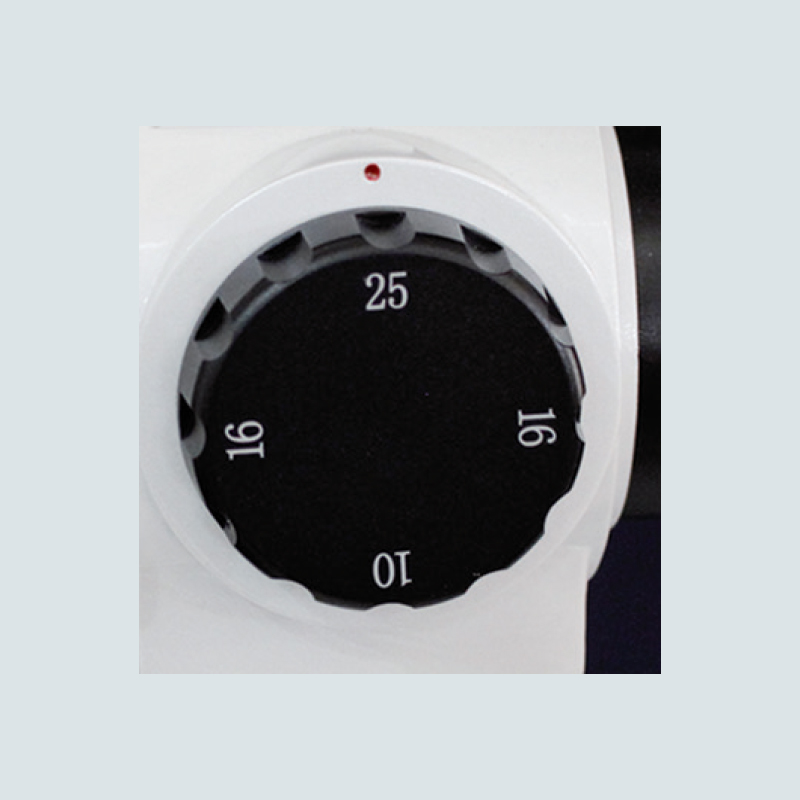

10X / 16X/ 25X
FIELD DIAMETER
23 / 14 / 8.7mm
LIGHTING
12V, 30W LED


SLL5M

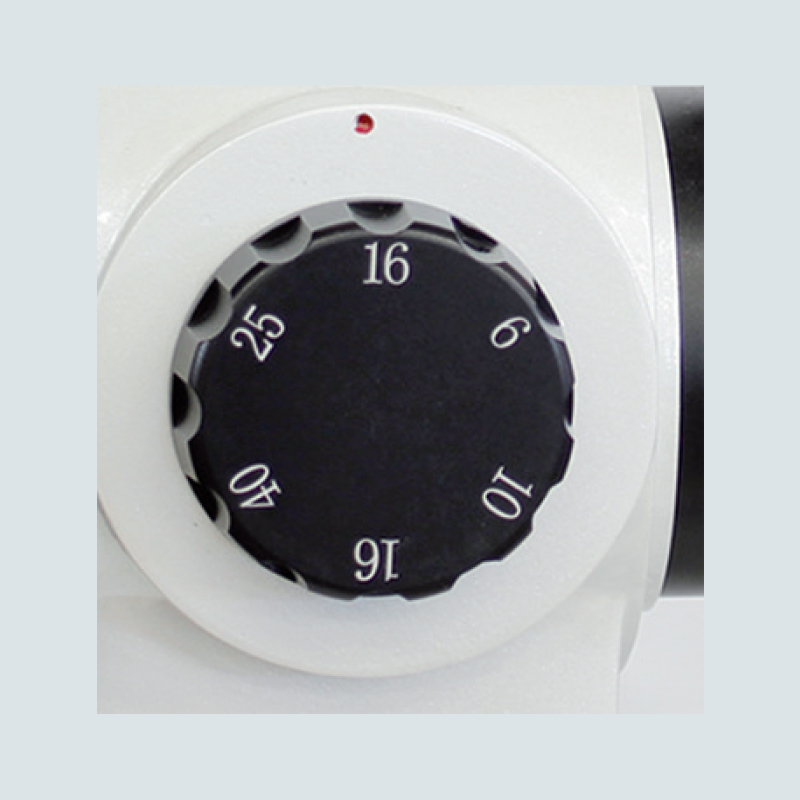

06X / 10X / 16X/ 25X /40X
FIELD DIAMETER
37/ 23 / 14 / 8.7/ 5.7mm
LIGHTING
LED

*All images are merely illustrative.
