• EyePiece: 12.5X.
• Field : 37 / 23 / 14 / 8.7 / 5.7 (mm).
• Pupilar distance : 54 mm~82 mm.
• Eyepiece adjustment: -7D ~ +7D .
• Slit width: 0mm~14mm continuous.
• Slit Height : 1mm~14mm continuous.
• Spot diameter: 14mm, 10mm, 5mm, 3mm, 1mm, 0.2mm.
• Slit angle : 0~180 Rotational.
• Filters : Heat, Gray, Green (Red-free), Blue(Cobalt).
• Illumination: 12v, 50w LED.
• Background ilumination adjustable (LED).
• Fixation target : LED Red 3.5V.
• Suply: 100~240V.
• Frequency: 48~62 Hz.


COMPATIBLE CAMERAS
• Canon EOS 500D 15.1 MPixel
• Canon EOS 550D 18 MPixel
• Canon EOS 600D 18 MPixel
• Canon EOS 650D 18 MPixel
• Canon EOS 700D 18 MPixel
• Canon EOS Rebel T1i 15.1 MPixel
• Canon EOS Rebel T2i 18 MPixel
• Canon EOS Rebel T3i 18 MPixel
• Canon EOS Rebel T4i 18 MPixel
• Canon EOS Rebel T5i 18 MPixel

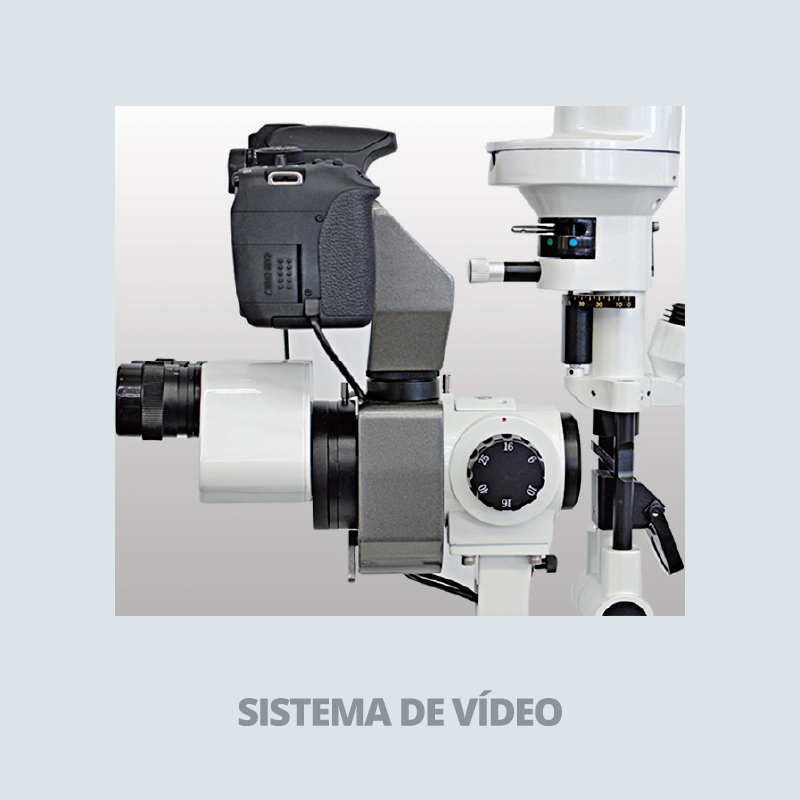

*Video system sold separately

*All images are merely illustrative.
